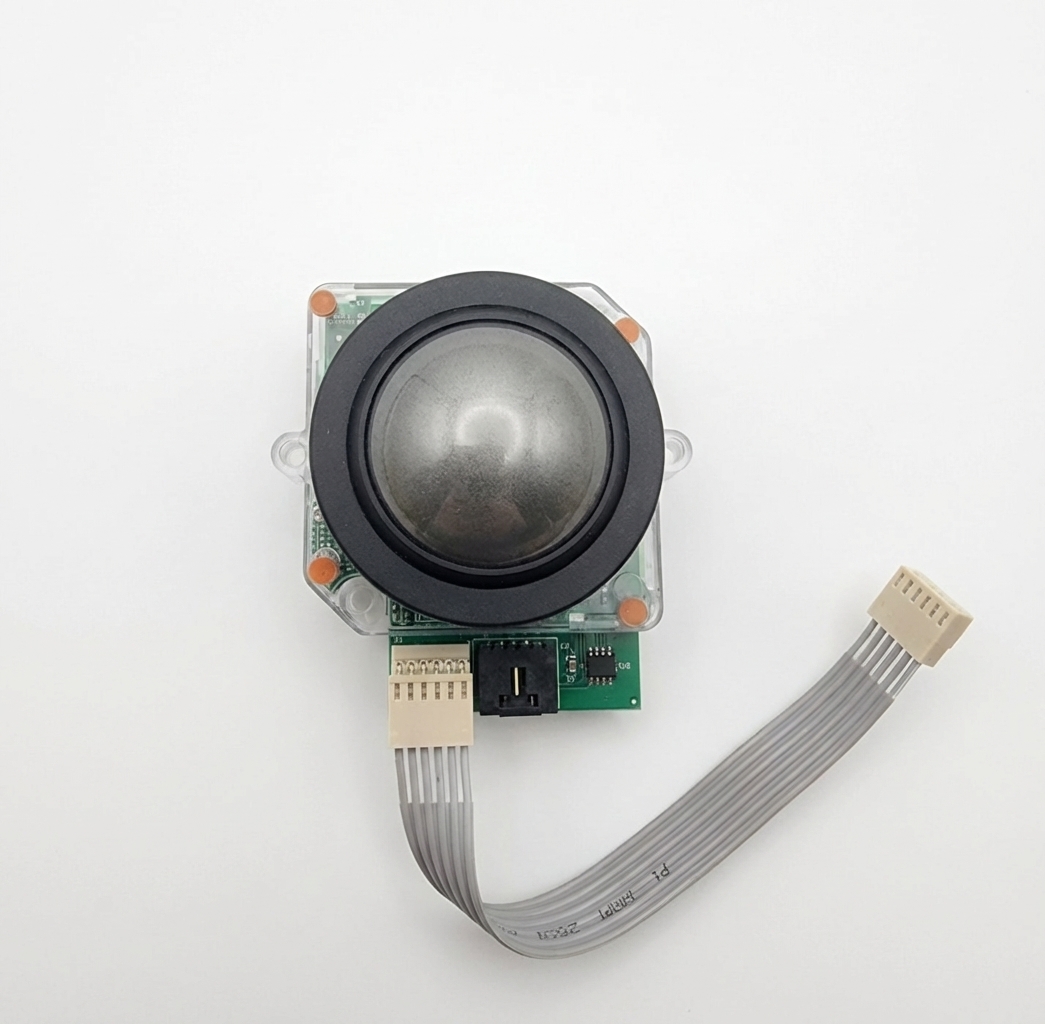

LASER TRACKBALL FOR VIVID E9 ULTRASOUND by GE Healthcare

Key Highlights

• The Laser Trackball for the Vivid E9 Ultrasound by GE Healthcare offers advanced cursor control, enhancing user experience and operational efficiency.
• Designed for sensitivity and rapid response, this device facilitates seamless navigation and interaction with ultrasound systems.
• Its 3-axis movement capability allows for precise control, making it ideal for complex imaging tasks.
• The integration of a trackball switch cable ensures reliable connectivity to the USB interface, streamlining setup and usage.
• Compatible with multiple GE ultrasound models, this trackball enhances versatility across various clinical applications.

Compatible Systems & Use Cases

This Laser Trackball is compatible with the following GE Healthcare models:

• LOGIQ E9
• VIVID E9
• VOLUSON E8
• VIVID Q

It is particularly useful in scenarios requiring detailed imaging and precise manipulation, such as obstetrics, cardiology, and general diagnostics.

Technical Specifications

Parameter	Value
Movement Type	3-axis
Connection Type	USB Interface
Components Included	Trackball, switch cable, screws, washers

Clinical and Service Value

The Laser Trackball enhances clinical workflows by providing healthcare professionals with a user-friendly interface for navigating ultrasound systems. Its intuitive design minimizes the learning curve, allowing practitioners to focus on patient care rather than device operation. As a result, the trackball can contribute to improved diagnostic accuracy and patient outcomes.

From a service perspective, the robust construction and reliable connectivity of the Laser Trackball ensure minimal downtime and maintenance. The ease of installation and integration with existing ultrasound systems simplifies procurement processes, making it a valuable addition to any imaging department. This device not only improves operational efficiency but also supports the long-term sustainability of imaging practices.

Additional notes

The Laser Trackball is an advance cursor control device. The track ball is very sensitive and is a fast response user friendly device. This part 3-axis movement controls and clicking options. This assembly consist of track ball, track ball switch cable, screws and washers. The track ball is connected with the control board through pins and tightened to the board. Screws connect the track ball and control board together. A trackball switch cable is used for connecting the switches located around the trackball to the USB interface. Press the middle button once to latch scroll mode one and by pressing again for latch scroll mode two. The middle button being pressed also toggles between scroll mode one and scroll mode two. This part is widely used in UL Vivid E9, PET Discovery STE 16-Slice, UL Vivid e, UL Vivid E9 Expert, UL Vivid E9, UL Vivid q, UL Logiq E9, UL Voluson E8 and other machines.
